MGJF12x35 multiple rip saw machine For Processing wood panel
Produktdetails:
| Herkunftsort: | China |
| Markenname: | Easwon |
| Zertifizierung: | CE |
| Modellnummer: | MGJF12X35 |
Zahlung und Versand AGB:
| Min Bestellmenge: | 1 Set |
|---|---|
| Preis: | negotiated |
| Verpackung Informationen: | Holzkoffer |
| Lieferzeit: | 25 Tage |
| Zahlungsbedingungen: | L/c, t/t |
| Versorgungsmaterial-Fähigkeit: | 50 Sätze pro Monat |
|
Detailinformationen |
|||
| Modell: | MGJF12X35 | Sägendicke: | 30 bis 120 |
|---|---|---|---|
| Sägenbreite: | 350 mm | Fütterungsgeschwindigkeit: | 0-8m/min |
| Spindeldurchmesser: | 70 mm | Hauptmotorleistung: | 30 kW + 30 kW |
| Fütterungsleistungsstärke: | 1,1 kW x 2 | Funktionstabellenlänge: | 800 mm vorne, 400 mm zurück |
| Zustand: | Neu | Garantie: | 1 Jahr |
| Hervorheben: | wood panel rip saw machine,multiple rip saw for woodworking,band saw machine for wood panels |
||
Produkt-Beschreibung

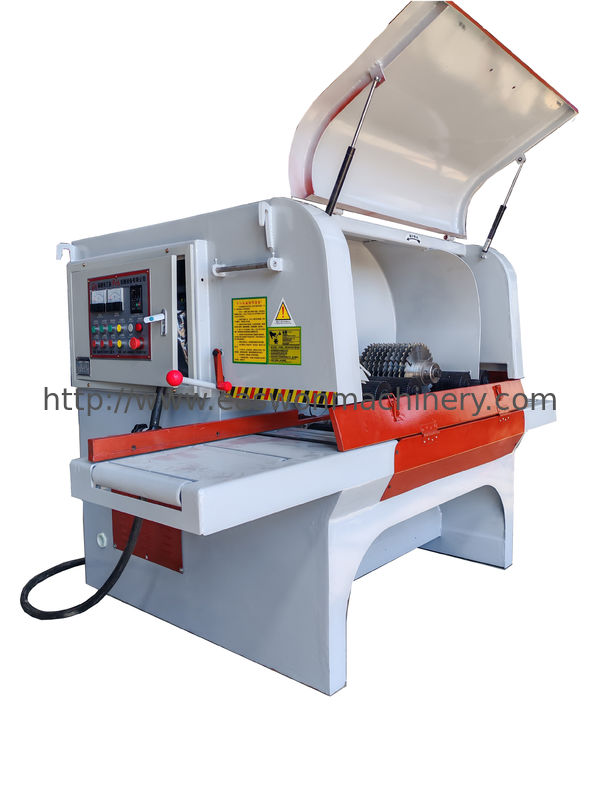

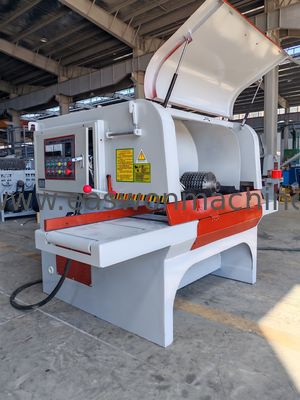

MGJF12X35 Automatic Multiple Rip Saw
MGJF12X35 Automatic Multiple Rip Saw is a high-efficiency woodworking machine designed for precise, simultaneous cutting of wood into multiple strips or boards. It features adjustable blades for customizable widths and is suitable for processing various wood types, including softwood and hardwood. Widely used in furniture manufacturing, flooring production, and timber processing, it ensures high productivity, accuracy, and minimal material waste, making it an essential tool for large-scale woodworking operations.
Specifications:
| Technical specification | Unit | MGJF12X35 |
| Main motor power | kw | 30 + 30 |
| Spindle speed | r/min | 2800 |
| Feeding motor power | kw | 1.1kw x 2 |
| Sawing thickness | mm | 30-120 |
| Sawing width | mm | <350 |
| Spindle diameter | mm | 70 |
| Feeding speed | m/min | 0-8 |
| Max. saw blade quantity | pcs | 10 |
| Working table length | mm | 800 front, 400 back |
| Saw blade size | mm | 230x2.6x70x36P+4T |
| Cooling water pressure | Mpa | 0.3-0.6 |
| Cooling way of saw blade | / | Axis water spray |
| Overall dimension | mm | 2000x1500x1400 |
| Net weight | kg | 2200 |
Package and shipping:
The rip saw is packed by plywood case, which is suitable for FCL and LCL shipping.
After sales services:
1. Warranty: 1 year
2. Lifetime upgrades and consulting services
3. 24-hour servic hot line for consulting and solving the problems
4. Provide product design and solution within 24 hours
5. Supply operational manual and maintance manual in English.
